CNN Architectures
Quick Recap on CNN
A typical CNN architecture contains three types of layers, respectively being convolution layer, pooling layer (including max-pooling and average pooling), fully connected layer.
Convolution Layer
The convolution layer comes with layers of filters, which are essentially a stack of smaller 3D matrices with the same depth as the input serving as the weight as in the fully connected layer.
The equation \([1]\) describes the output matrix size after a convolution in which \(P\) stands for padding, \(F\) stands for filter size (kernel size) and \(S\) stands for stride.
Pooling Layer
The pooling layer is used to reduce the matrix size. Just like what we did in convolution process, we apply a filter to the matrix except that this filter does not have any parameters.
The filter in max pooling operation servers to extract the maximum value within the cells covered by the filter as it moves \(S\) (stride) number of steps ahead.
Rather than performing the max operation, the general pooling performs the average operation as it moves \(S\) (stride) number of steps ahead.
Equation \([2]\) describes the general method for calculating the matrix size after a pooling operation.
Fully Connected Layer
As the name suggests, layers in the rear end of CNN are fully connected layers as in regular neural network. The operation here is the same as that in regular neral network.
Batch Normalization
Definition
Sometimes after a dot product, the values in the matrix may become either too large or too small making it hard for the network to train (values with 0 mean and 1 std is considered suitable for network training). To address this problem, we introduce the batch normalization.
For a \(N \times D\) input matrix, batch normalization first sums over axis \(0\) to compute \(\mu\) and \(\sigma\), resulting in two \(1 \times D\) matrices. With these two matrices, we can then calculate the \(\hat{x}\) by performing normalization. Finally, use \(\gamma\) (scale) and \(\beta\) (shift) values to add learnable parameters.
One thing to notice is that if \(\gamma = \sigma\) and \(\beta = \mu\), the normalization process will bring the input back to its original state.
Another thing to notice is that batch normalization is only valid at training time since in each training epoch, a batch of input will be sent in while at test time, only one sample is passing into the model making batch normalization meaningless.
To mitigate this problem, we can use running mean and running variance method. Basically, during training time, we constantly accumulate the mean and variance values we calculated with the help of a new parameter -- \(\rho\).
Forward
The forward of batch normalization involves only the use of np.mean and np.var
with the axis parameter set to 0 and keepdims set to True.
For detailed code implementation, see assignment2/cs231n/layers.py.
Backward
Usually when we try to back propagate a given function, a computation graph will be of great help. The key to draw a correct computation graph lies in determining the exact number of inputs and the interconnection between each calculated parts.
\[ \begin{align} \mu &= \dfrac{1}{N} \sum_{k=1}^{N} x_k \\ \sigma^2 &= \dfrac{1}{N} \sum_{k=1}^{N} (x_k - \mu)^2 \\ \hat{x} &= \dfrac{x - \mu}{\sqrt{\sigma^2 + \epsilon}} \\ \hat{y} &= \gamma \times \hat{x} + \beta \end{align} \]

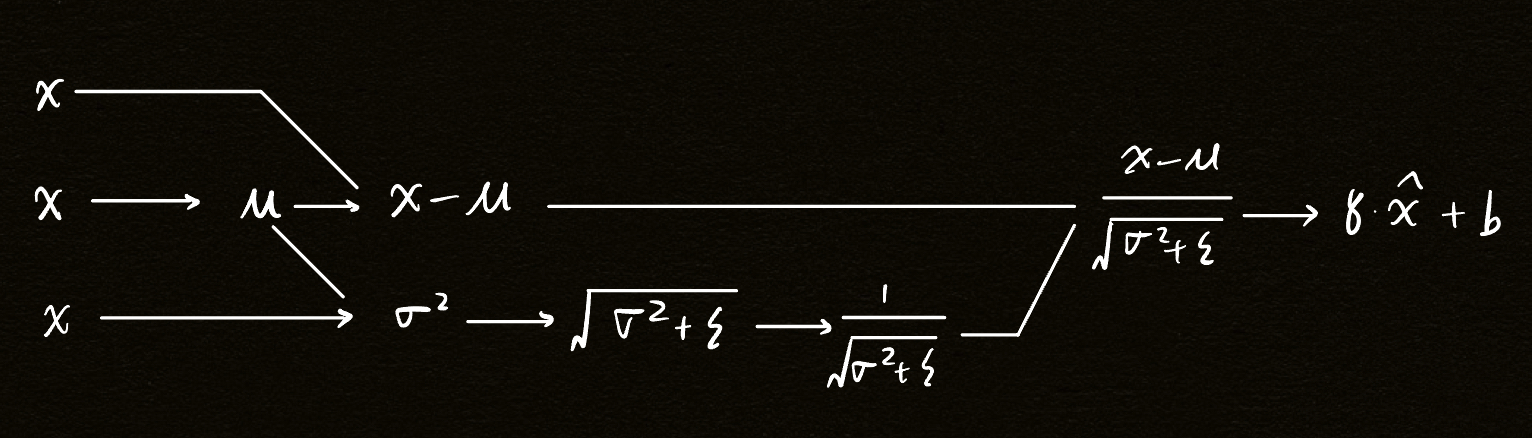

The computation graph for the above equations will be the following.
The first key takeaway here is \(x - \mu\). Why should we add another \(x\) pointing to the \(\mu\) given that we can derive this equation all at once? The reason lies in the fact that we're reusing \(x\) in this case, and it means we're introducing an external \(x\) value which should be back propagated to in the backward pass.
Another key takeaway is that there's a connection between \(\mu\) and \(\sigma^2\). The same holds true in this case. According to the equation for calculating the \(\sigma^2\), we reuse the \(\mu\) term and it should be back propagated to as well.

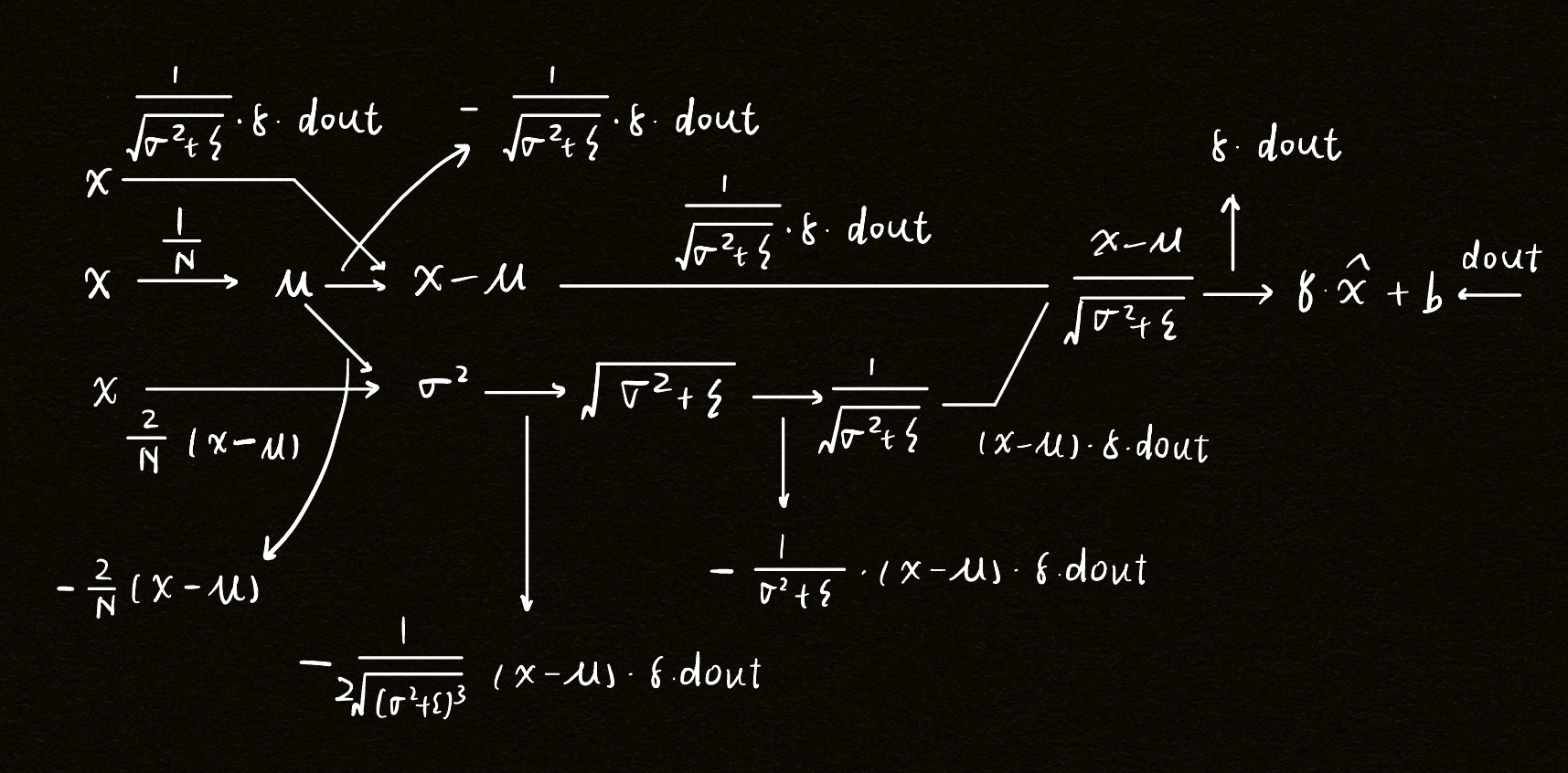

The backward computation graph is displayed below.
The sample code for back prop is shown below (The variable cache originates from the
forward method. Refer to layers.py for in-detail implementation).
def batchnorm_backward(dout, cache):
"""Backward pass for batch normalization.
For this implementation, you should write out a computation graph for
batch normalization on paper and propagate gradients backward through
intermediate nodes.
Inputs:
- dout: Upstream derivatives, of shape (N, D)
- cache: Variable of intermediates from batchnorm_forward.
Returns a tuple of:
- dx: Gradient with respect to inputs x, of shape (N, D)
- dgamma: Gradient with respect to scale parameter gamma, of shape (D,)
- dbeta: Gradient with respect to shift parameter beta, of shape (D,)
"""
dx, dgamma, dbeta = None, None, None
###########################################################################
# TODO: Implement the backward pass for batch normalization. Store the #
# results in the dx, dgamma, and dbeta variables. #
# Referencing the original paper (https://arxiv.org/abs/1502.03167) #
# might prove to be helpful. #
###########################################################################
# *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****
x_hat = cache["x_hat"]
x_origin = cache["x_origin"]
gamma = cache["gamma"]
var = cache["var"]
avg = cache["avg"]
N, _ = dout.shape
dbeta = np.sum(dout, axis=0)
dgamma = np.sum(x_hat * dout, axis=0)
# dvalues from previous layers
dx_hat = dout * gamma
dvar = np.sum(dx_hat * (x_origin - avg) * -0.5 / np.sqrt(var ** 3), axis=0)
dmu = np.sum(dx_hat * -1 / np.sqrt(var), axis=0) + dvar * np.sum(-2.0 * (x_origin - avg), axis=0) / N
# Recall in the forward graph, there're three x contributing to the results
dx = dx_hat / np.sqrt(var) + dvar * 2 * (x_origin - avg) / N + dmu / N
# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****
###########################################################################
# END OF YOUR CODE #
###########################################################################
return dx, dgamma, dbeta
Layer Normalization
Other than batch normalization, layer normalization is another common technique. Instead of summing over the \(0\) axis, layer normalization sums over axis \(1\).
To show the difference in detail, consider the following code.
# Batch Norm
avg = np.mean(x, axis=0, keepdims=True)
var = np.var(x, axis=0, keepdims=True)
# Layer Norm
avg = np.mean(x, axis=1, keepdims=True)
var = np.var(x, axis=1, keepdims=True)
The most important difference between layer norm and batch norm is that layer norm can be safely run in test time without the running mean or running var technique.
Forward
The forward method is partially shown in the above code sample. For detailed
implementation, see layers.py file.
Backward
The backward of layer norm runs nearly the same as the batch norm except that batch norm sums over the number of samples while layer norm sums over the number of features which leads to a different choice of axis and a different choice of division number.
To illustrate, consider the core part of backward pass in batch norm.
dx_hat = dout * gamma
dvar = np.sum(dx_hat * (x_origin - avg) * -0.5 / np.sqrt(var ** 3), axis=0)
dmu = np.sum(dx_hat * -1 / np.sqrt(var), axis=0) + dvar * np.sum(-2.0 * (x_origin - avg), axis=0) / N
We sum the dvar based on the \(0\) axis and we divide part of dmu by N.
In layer norm, however, we must sum over axis \(1\) and keep the dimension
along the way because that's how we calculate the normalization in the first
place. Also, rather than dividing by N, we should now divide by D (the
second dimension of dout).
