RNN
So far, we've seen and practiced the so-called "Feed Forward" neural network which takes in inputs and outputs either a class score or regression value.
But what if the input is a sequence and our required output is another sequence? For example, in terms of machine translation, our target is to translate a sequence of characters into another language.
RNN (Recurrent Neural Network) is born to do that. The vanilla RNN is pretty by definition. The basic building block receives an input, performs some operation with another variable called "hidden state" in the block and outputs the vector. This new vector serves as the hidden state of the next building block.
With this basic structure, a bunch of variances can be constructed. The many to one structure takes in a sequence of inputs and outputs one vector. The one to many structure takes in one vector and outputs a sequence vectors. The similar thing applies to many to many structure.
Of the 3 variances mentioned, the "many-to-one" and "one-to-many" are also referred to as encoder and decoder respectively.
Tip
I strongly recommend viewing the original slides and the course given by Michigan online
Example
Suppose we're trying to build a model that takes a characters and predict the next character iteratively (something similar to GPT).
Calculating Hidden State
The first we want to do is finding a suitable way to represent each letter. In this case we'll just use an one-hot vector to encode each character. The next thing is calculating the hidden state for the next building block.
To be more specific, we have the following formula.
\(f_W\) is a short hand for weight matrix. To expand the above formula, we have:
Notice here we're performing a dot product. It's correct but considering the fact that \(x\) is a one-hot vector, performing a dot product is slower comparing to just selecting the corresponding weight vector, which leads us to Embedding Layer. Embedding layer is nothing more than the dot product between a one-hot vector and a weight matrix.
Now that we've finished calculating the next hidden state and output a character, the logical step is to input this predicted character to the same model and keep on with the exact training process.
Loss, BackProp
As a reasonable next move, we should now think about the loss function and the back propagation procedure.
Without diving into computation details, these two processes seem pretty normal. However, what if our model has a depth of 100 or even 1000 since we might want our model to translate the entire paragraph or even the entire article? In such cases, the back propagation process will need to store a ton of weight, input, hidden state matrices just for a single backward pass. Our GPU memory will easily run out.
That's why Truncated Back Propagation is put forward. The basic idea for truncated backward is that the entire network is truncated into parts of chunks. For each chunk of regular size, we perform the forward pass operation, store the hidden state matrix and compute the backward gradients. For the next chunk, all we need is the newly-computed hidden state, without the need for previous matrices since they're already updated.
Another Example
Another application for RNN is image captioning. This can be done in 3 steps.
Extracting Image Features
The raw image first passes through a convolution layer to extract the image features.
Add Features to RNN
Recall the formula above where we calculate the current hidden state.
\[ h_t = f_W(h_{t-1}, x) \]
We simply add another parameter to this function.
But what is the \(x\)?
Defining Start And End Token
In the case of image captioning, there's no initial character to inform the model to starting predicting the next. To resolve this, we need to set a special token <start> to enable the prediction sequence. Similarly, the model should output a <end> token indicating the end of prediction.
Problems
The problem with this architecture of RNN is that the gradients are prone to becoming stagnant.
Note
By saying "this architecture", I actually mean the \(f\) function is \(\tanh\) function
This is because as we back propagates, we're actually accumulating the multiplication result of weight matrix. The weight matrix may either be greater than 1 or less than 1. But if we cumulatively multiply this small scalar value (for example, consider \(1.2^{100}\)), the result will either be so big that exceeds the maximum a computer can represent or small enough that can be ignored. The gradients would then fall into stagnancy, often called vanishing gradients.
LSTM
To keep the gradients flowing, LSTM introduces another state called cell state.

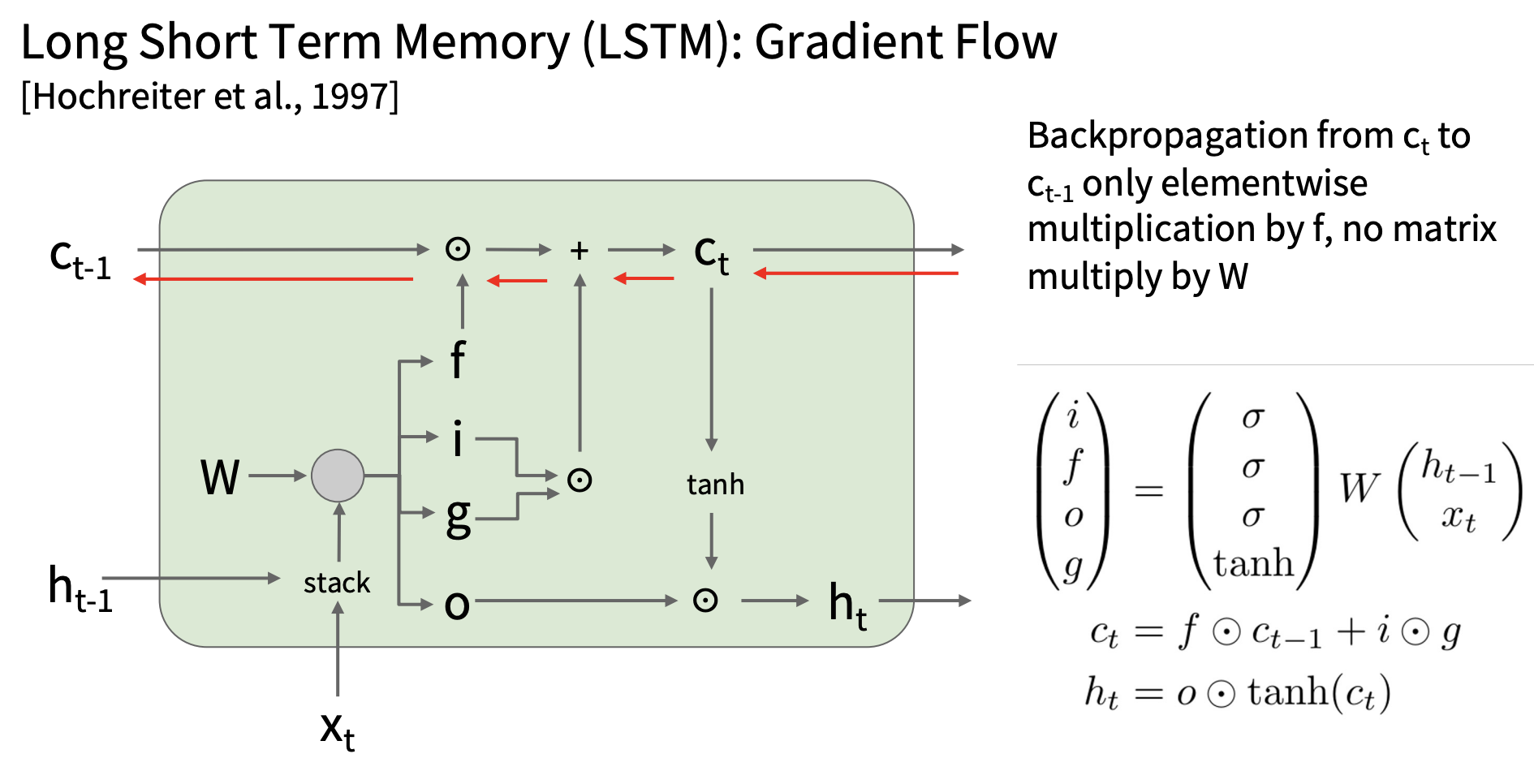

In Fig2, we can see the cell state flows backward without obstacle since it only involves a sum gate and a multiplication gate, the former giving a gradient of 1 and the latter giving the value of \(f\). Since \(f\) is sigmoid function, the value is always within range \((0, 1)\)
One thing to keep in mind is that LSTM does not eradicate the vanishing/exploding gradients problem. They still exists in computing the gradients for \(h\) (hidden state). The LSTM simply adds a flowing path for cell state to update so that the entire network would not run into stagnant.
